Tool Interface

Tool Interface Overview

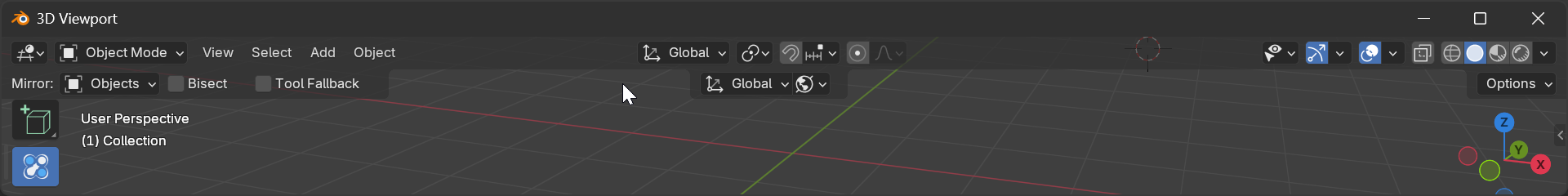

Header Settings

Mirror Mode

Choose what to mirror:

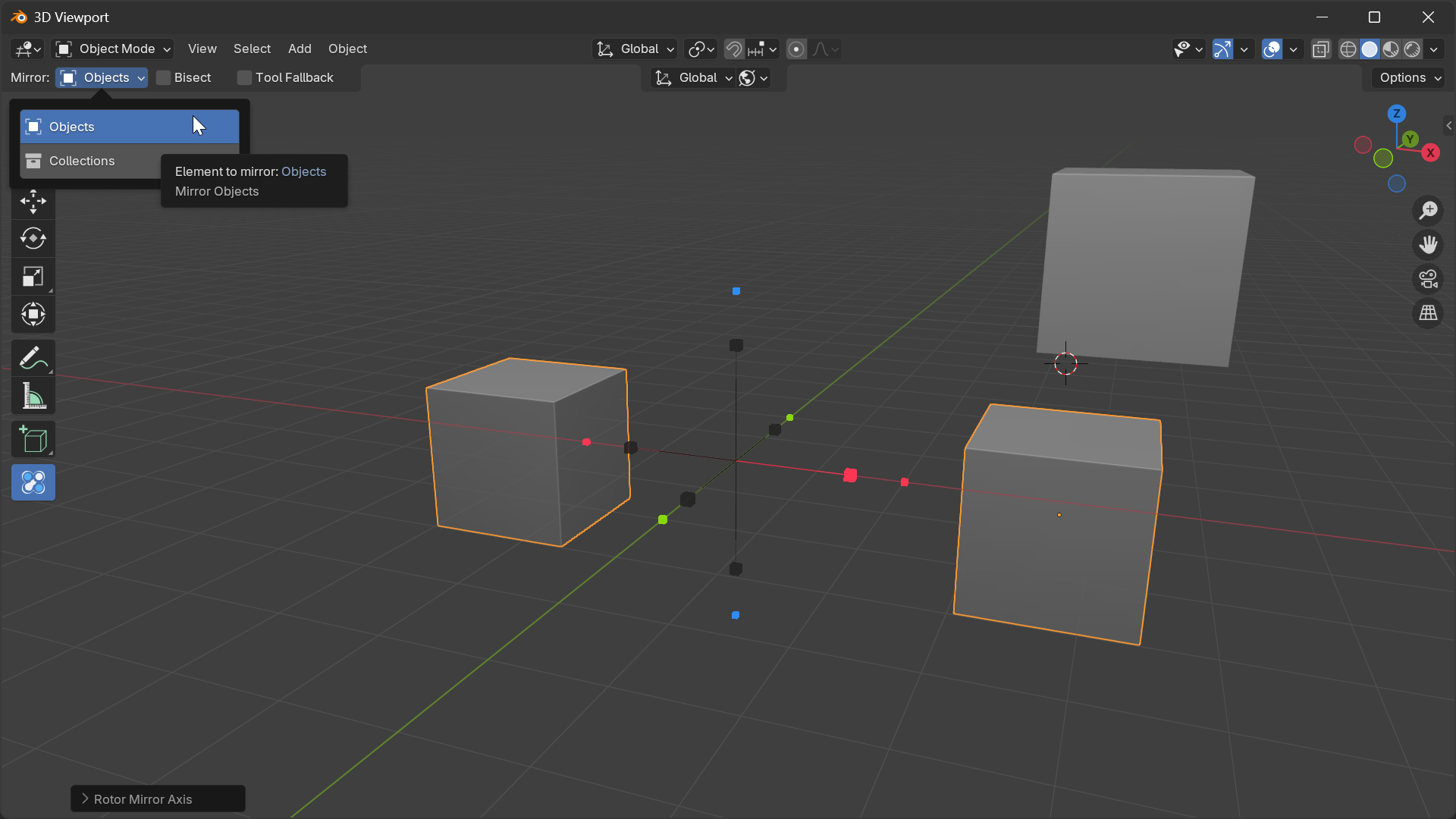

Objects (default) Objects Mode

Individual objects get their own modifiers
Independent settings per object

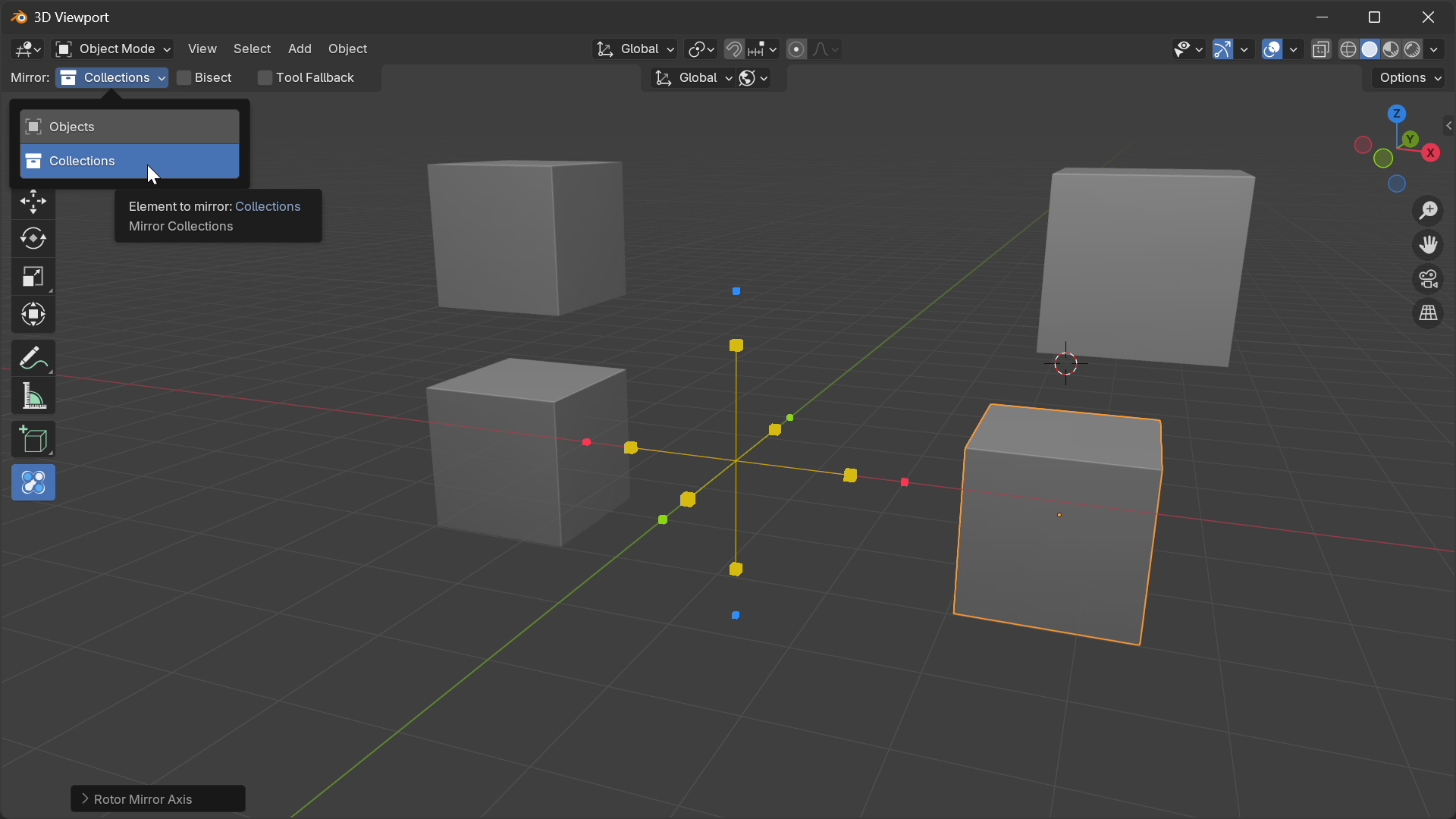

Collections Collections Mode

Mirror entire collections as instances
Maintains object relationships

Bisect

Cuts geometry at mirror plane for clean edges.

Tool Fallback

Returns to previous tool after mirroring. Use ESC to manually return.

Orientation

Controls mirror plane direction:

Global - World axes
Local - Object axes
Cursor - 3D cursor axes

Pivot

Sets mirror center:

Active - Active object center
Individual - Each object’s center
World - World origin (0,0,0)
Cursor - 3D cursor position

Customization

In Edit → Preferences → Add-ons → Rotor:

Gizmo Size: 0.5x to 2.0x scale
Gizmo Colors: Customize axis colors

Keyboard Shortcuts

Key	Action
`Alt+X`	Activate Rotor
`ESC`	Return to previous tool
`LMB`	Click gizmo to mirror

Next Steps

Learn about Orientations and Pivots for advanced control.
